GJYXFCH/GJYXCH
皮線光纜系列-金屬/非金屬自承式皮線光纜
Indoor cable series
產品描述

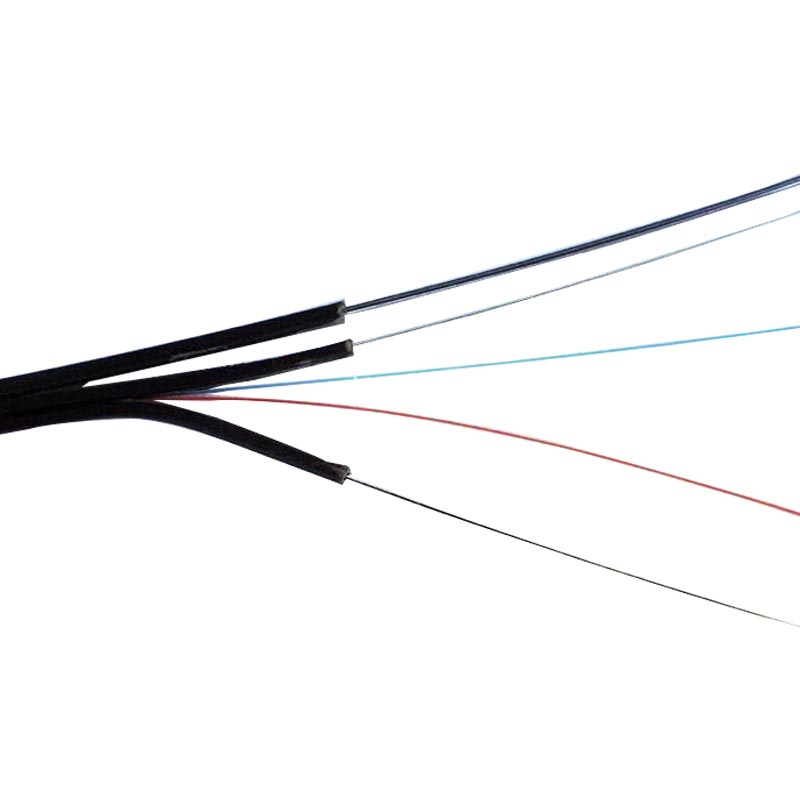

GJYXFCH/GJYXCH自承式蝶形引入光纜是在GJXFH/GJXH光纜外側再附加一根增強元件（鋼絲或者鋼絲繩）。
The GJYXFCH/GJYXCH self supporting butterfly is introduced to the outside of the GJXFH/GJXH cable to attach an additional element (steel wire or wire rope).
產品特點
獨特的凹槽設計，易剝離，方便接續，簡化安裝和維護，抗拉力更強。
適用于戶外架空引入到室內。
低煙無鹵阻燃護套，環保，安全。
Unique groove design, easy stripping, easy connection, simplify the installation and maintenance, and more resistant to tension.
Suitable for outdoor overhead introduction to indoor.
Low smoke halogen free flame retardant sheath, environmental protection, safety.
產品標準
滿足YD/T1258.4-2005, IEC 60794-2-20/21標準。
Meet IEC, 60794-2-20/21 YD/T1258.4-2005 standard.
交貨長度
推薦長度:2000米;可按客戶要求提供其他長度。
Recommended length: 2000 m; other length can be provided according to customer's request.
技術參數
|
|
|
光纜尺寸
|
光纜重量
|
|
允許拉伸力
|
允許壓扁力
|
最小彎曲半徑
|
|
|
光纜型號
|
|
長期/短期
|
長期/短期
|
靜態/動態
|
|
|
mm
|
Kg/km
|
|
|
|
|
|
N
|
N/100mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GJYXFCH-1B6a2
|
(2.0±0.1)×(5.2±0.3)
|
18.9
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJYXFCH-2B6a2
|
(2.0±0.1)×(5.2±0.3)
|
18.9
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJYXCH-1B6a2
|
(2.0±0.1)×(5.2±0.3)
|
21
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJYXCH-2B6a2
|
(2.0±0.1)×(5.2±0.3)
|
21
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
儲存、使用溫度℃
|
|
|
-20~+60
|
|
|
|
|
|
|
|
|
|
|
|
