GJXH/GJFXH
皮線光纜系列-金屬/非金屬皮線光纜
Indoor cable series
產品描述

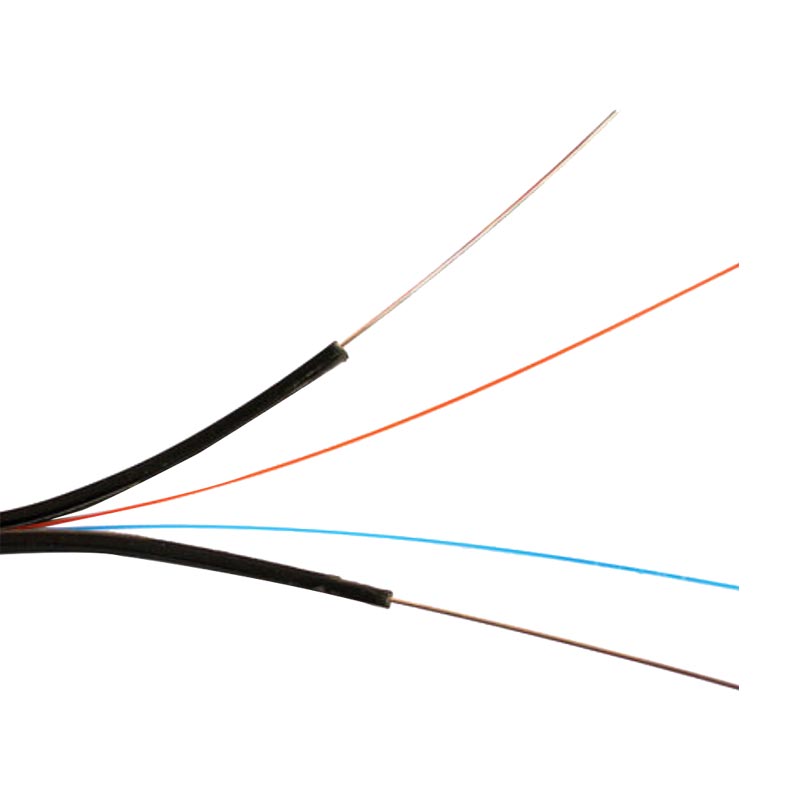

GJXH蝶形引入光纜是將光纖置于中心，兩側放置兩根平行鋼絲或FRP作為加強元件，擠制低煙無鹵阻燃護套成纜。
GJXH butterfly introduction of optical fiber cable is placed in the center, placed on both sides of the parallel wire as the strengthening of the components, extruded low smoke halogen free flame retardant sheath into cable.
產品特點
光纜結構簡單，重量輕，抗拉力強，無金屬。
獨特的凹槽設計，易剝離，方便接續，簡化安裝和維護。
低煙無鹵阻燃護套，環保，安全。
Optical cable has simple structure, light weight, high tensile strength, and no metal.
Unique groove design, easy stripping, easy connection, simplified installation and maintenance.
Low smoke halogen free flame retardant sheath, environmental protection, safety.
產品標準
滿足YD/T1258.4-2005, IEC 60794-2-20/21標準。
Meet IEC, 60794-2-20/21 YD/T1258.4-2005 standard.
交貨長度
推薦長度:2000米;可按客戶要求提供其他長度。
Recommended length: 2000 m; other length can be provided according to customer's request.
技術參數
|
|
|
光纜尺寸
|
光纜重量
|
|
允許拉伸力
|
允許壓扁力
|
最小彎曲半徑
|
|
|
光纜型號
|
|
長期/短期
|
長期/短期
|
靜態/動態
|
|
|
mm
|
Kg/km
|
|
|
|
|
|
N
|
N/100mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GJXH-1B6a2
|
(2.0±0.1)×(5.2±0.3)
|
18.9
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJXH-2B6a2
|
(2.0±0.1)×(5.2±0.3)
|
18.9
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJXH-1B6a2
|
(2.0±0.1)×(5.2±0.3)
|
21
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
GJXH-2B6a2
|
(2.0±0.1)×(5.2±0.3)
|
21
|
|
300/600
|
1000/2200
|
15/30
|
|
|
|
|
|
|
|
|
|
|
|
儲存、使用溫度℃
|
|
|
-20~+60
|
|
|
|
|
|
|
|
|
|
|
|
