.GJFJV
室內光纜系列-多芯室內緊包光纜
Indoor optical cable series
產品描述

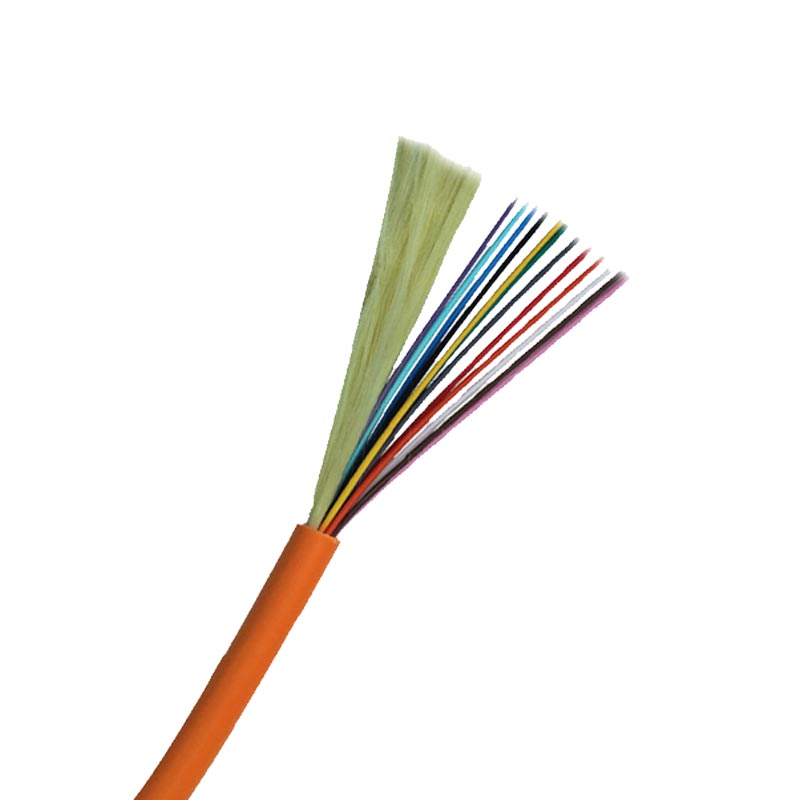

多芯束狀光纜使用多根900μm緊套光纖作為傳輸介質，外覆芳綸紗作為加強元件，最外擠制一層聚氯乙烯（PVC）護套而成。也可根據(jù)客戶需求提供LSZH、TPU等材質的護套。
Cores bunched cable using a plurality of 900 m tight tube optical fiber as the transmission medium, coated aramid yarn as the reinforcing elements and the extrusion with a layer of polyvinyl chloride (PVC) sheath and. Can also be based on customer needs to provide LSZH, TPU and other materials of the sheath.
產品應用
多芯光纖活動連接器。
室內綜合布線。
Multi core optical fiber active connector.
Indoor integrated wiring.
產品標準
滿足YD/T1258.4-2005, IEC 60794-2-20/21標準。
Meet IEC, 60794-2-20/21 YD/T1258.4-2005 standard.
交貨長度
推薦長度:2000米;可按客戶要求提供其他長度。
Recommended length: 2000 m; other length can be provided according to customer's request.
技術參數(shù)
|
|
|
光纜尺寸
|
光纜重量
|
允許拉伸力
|
允許壓扁力
|
彎曲半徑
|
|
|
光纜型號
|
長期/短期
|
長期/短期
|
靜態(tài)/動態(tài)
|
|
|
mm
|
Kg/km
|
|
|
|
|
|
N
|
N/100mm
|
mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GJFJV-4Xn
|
5.2±0.4
|
30
|
|
600/1200
|
1000/2200
|
65/130
|
|
|
|
|
|
|
|
|
|
|
|
GJFJV-6Xn
|
5.5±0.4
|
35
|
|
600/1200
|
1000/2200
|
65/130
|
|
|
|
|
|
|
|
|
|
|
|
GJFJV-8Xn
|
6.4±0.4
|
36
|
|
600/1200
|
1000/2200
|
65/430
|
|
|
|
|
|
|
|
|
|
|
|
儲存、使用溫度℃
|
|
|
-20~+60
|
|
|
