GYXTW
室外光纜系列-中心束管式鎧裝通信光纜
Outdoor optical cable series

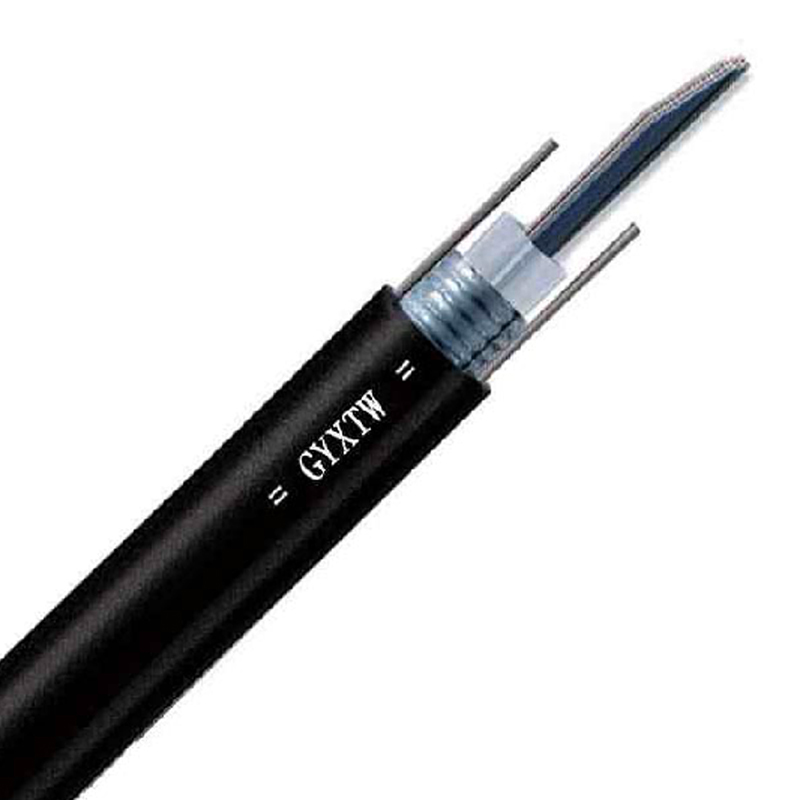

GYXTW光纜的結構是將單模或多模光纖套入由高模量的聚酯材料做成的松套管中，套管內填充防水化合物。松套管外用雙面鍍鉻涂塑鋼帶縱包，鋼帶和松套管之間加阻水材料以保證光纜的緊湊和縱向阻水，兩側放置兩根平行鋼絲后聚乙烯(PE)護套成纜。
GYXTW cable structure is the single mode or multimode fiber into the loose tube made of high modulus polyester material, the casing filled with waterproof compound. Loose casing external double chrome coated strip longitudinal package, between the strip and the loose tube and water blocking material to keep the cable tight and watertight are placed at the two sides. Two parallel steel wire, polyethylene (PE) sheathed cable.
精確控制的光纖余長保證了光纜具有良好的機械性能和溫度特性。
松套管本身具有良好的耐水解性能和較高的強度，管內充以特種油膏，對光纖提供了關鍵性保護。
特別設計的緊密的光纜結構，有效防止套管回縮。
良好的抗側壓性和柔軟性。
雙面鍍鉻涂塑鋼帶(PSP)提高光纜的抗透潮能力。
兩根平行鋼絲保證光纜的抗拉強度。
聚乙烯(PE)護套具有很好的抗紫外輻射性能，直徑小、重量輕、容易敷設。
the precise control of the fiber length ensures that the optical cable has good mechanical properties and temperat
ure characteristics.
Loose sleeve material itself has good resistance to hydrolysis performance and high strength, tube filled with .
special cream, the fiber provides key protection.
Specially designed compact cable structure to effectively prevent casing retraction.
good lateral pressure resistance and softness.
Double - chrome coated strip (PSP) to improve the anti moisture penetration ability of cable.
Two parallel wires to ensure the tensile strength of the optical cable.
Polyethylene (PE) sheath has very good resistance to UV radiation, small diameter, light weight, easy to lay.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光纜型號
|
|
松套管
|
護套標稱
|
光纜直徑
|
光纜重量
|
允許拉伸力
|
允許壓扁力
|
|
|
光纖數
|
長期/短期
|
長期/短期
|
|
|
（以2纖遞增）
|
尺寸mm
|
厚度mm
|
mm
|
kg/km
|
|
|
|
N
|
N/100mm
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GYXTW-2~12Xn
|
2~12
|
2.0/3.0
|
|
2.6
|
10.2
|
105
|
600/1500
|
1000/3000
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GYXTW-2~12Xn
|
2~12
|
2.0/3.0
|
|
3.0
|
11.0
|
132
|
1000/3000
|
1000/3000
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GYXTW-2~24Xn
|
2~24
|
2.8/4.0
|
|
2.6
|
13.0
|
142
|
600/1500
|
1000/3000
|
|
|
|
|
|
|
|
|
|
|
|
|
|
GYXTW-2~24Xn
|
2~24
|
2.8/4.0
|
|
3.0
|
13.0
|
170
|
1000/3000
|
1000/3000
|
|
|
|
|
|
|
|
|
注解: 1．型號的后綴Xn表示選用的光纖類型，詳見長飛光纜型號說明；
|
2. 套管和光纖的顏色排列見色譜表。
|
|
|
